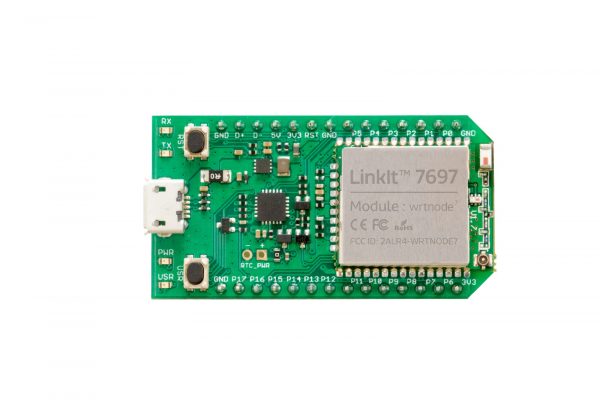

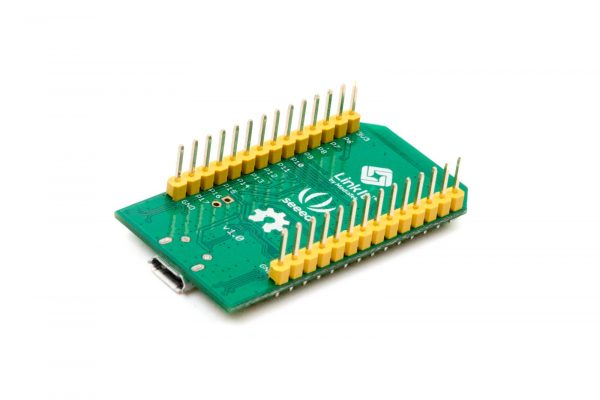

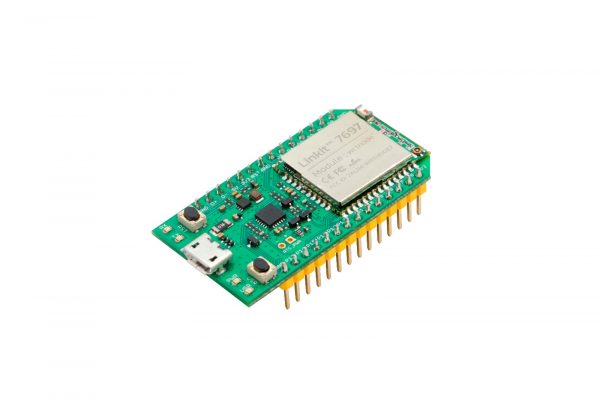

LinkIt 7697 is a co-design product by Seeed Studio and MediaTek. As the latest member of the LinkIt family, it uses the MediaTek MT7697 SoC and aims at providing lightweight IoT solution. It may reminds you of LinkIt Smart 7688/Duo, another development board which released in 2015. Both of them are born for IoT however they are quite different.
The chipset of LinkIt 7697 is MT7697, a highly integrated single chip which features an application processor, a low power 1×1 11n single-band Wi-Fi subsystem, a Bluetooth subsystem, and a Power Management Unit. The application processor subsystem contains ARM Cortex-M4F MCU. It also includes many peripherals, including UART, I2C, SPI, I2S, PWM, IrDA, and auxiliary ADC.
For programming, you can program the board with the native LinkIt SDK using GCC, IAR embedded workbench, or KEIL uVision. In order to make it easier to use, LinkIt 7697 also provides a porting layer to the popular Arduino IDE – so that you can use your existing Arduino sketches and peripheral driver libraries.
If comparing with Arduino UNO, you will find that the LinkIt 7697 is more powerful as it can run more complicated and store larger program, IoT application friendly and cost effective, you can even plug it into a breadboard directly and start your IoT project right away.
Grove Breakout for LinkItTM Smart 7688 Duo is a Grove port integrated and a feature expansion board for LinkItTM Smart 7688 Duo development board. This breakout board will save a lot of work for quicker prototyping, especially for novices through simplified wiring procedure. So it will help a beginner get a quick start. It supports serial buses like I2C, UART and provides access to reserved original pins of LinkItTM Smart 7688 Duo.
LinkIt Smart 7688 專用 Grove 擴充板 乙太網路接口、USB 、音樂、Grove I2C、串口接口
Breakout for LinkIt Smart 7688 is a Grove port integrated expansion board for LinkItTM Smart 7688 development board. This breakout board will save a lot of work and makes prototyping easier through simplified wiring. It will assist a beginner to get started fast. It supports serial buses like I2C, UART. It comes with USB, Ethernet and 3.5mm Audio ports.
