Grove – Sunlight Sensor 陽光 UV 紫外線感測器 seeed原廠

-21%

Grove – Sunlight Sensor 陽光 UV 紫外線感測器 seeed原廠

NT$400 NT$314 未稅

Grove – Sunlight Sensor是一種多通道數字光線傳感器,具有檢測紫外光,可見光和紅外光的能力。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

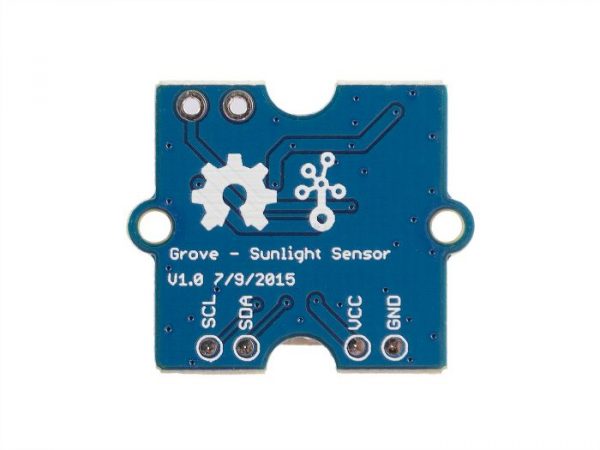

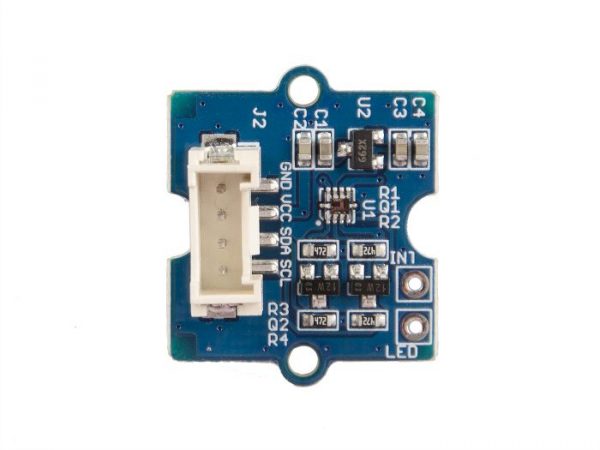

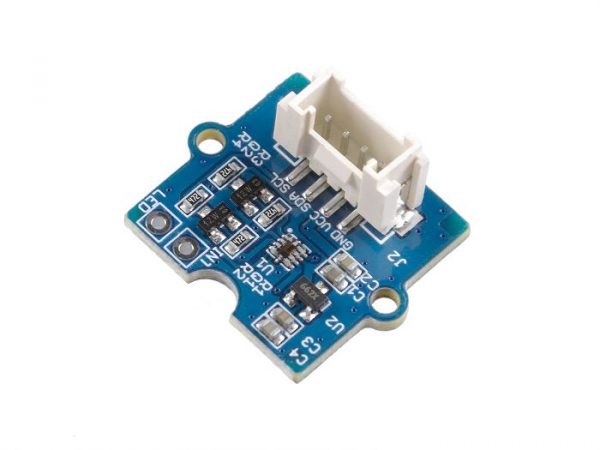

Grove Sunlight Sensor 陽光 UV 紫外線感測器

夏天來了,想做一個紫外檢測器知道紫外線指數當你在陽光下嗎?使用 Grove Sunlight Sensor 陽光感測器 可以輕鬆幫您完成這個專案。Grove Sunlight Sensor 陽光感測器是一個多通道數位光感測器,它具有檢測UV光的能力,可見光和紅外光。該裝置是基於 Si1145 晶片,是Silabs公司所生產的感測器。 Si1145是一種低功耗,基於反射率,紅外接近,紫外線指數和環境光感測器具有I2C數位介面和可程式設計事件中斷輸出。本裝置提供性能優良的寬動態範圍和各種光源包括陽光直射。
Grove - 陽光傳感器

特徵

  • 數字光線傳感器
  • 廣譜檢測範圍提高準確性。
  • 可編程配置
  • 直接檢測陽光
  • Grove 接口
  • I2C接口(7位)



規格參數

工作電壓 3.0-5.5V
工作電流 3.5毫安
波長 280-950nm
I2C地址 0X60
工作溫度 -45-85℃



硬件概述

  • Grove接口 – 包括VCC,GND,SDA和SCL四個引腳的接口
  • LED – LED驅動引腳
  • INT – 一個可編程中斷輸出
  • SI1145 – IC



這裡有一個使用本感測器建構的專案,偵測 UV 紫外線強度 https://www.seeed.cc/DIY-a-Carry-on-UV-Detector-p-393.html





出貨清單

  • Grove – Sunlight Sensor x1
  • Grove連接線 x1



Documents





=========================================================



Grove – Sunlight Sensor

Summer is coming, want to make a UV detector to know the UV index when you are under the sun? Grove – Sunlight Sensor is recommend here.

Grove – Sunlight Sensor is a multi-channel digital light sensor, which has the ability to detect UV-light, visible light and infrared light.

This device is based on SI1145, a new sensor from SiLabs. The Si1145 is a low-power, reflectance-based, infrared proximity, UV index and ambient light sensor with I2C digital interface and programmable-event interrupt output. This device offers excellent performance under a wide dynamic range and a variety of light sources including direct sunlight.

Grove – Sunlight Sensor include an on-bard Grove connector, which help you to connect it your Arduino easily. You can use this device for making some project which need to detect the light, such as a simple UV detector.

Features

  • Digital light sensor
  • Wide spectrum detection range
  • Programmable configuration
  • 3.3/5V Supply
  • Detect sunlight directly
  • Grove compatible
  • I2C Interface(7-bit)

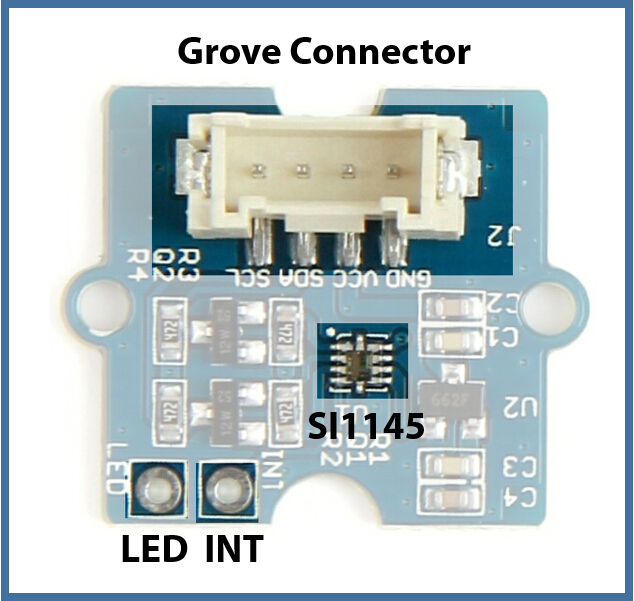

Hardware Overview


  • Grove Connector – a 4pin interface, contain VCC, GND, SDA and SCL
  • LED – LED Driver pin
  • INT – a programmable interrupt output
  • SI1145 – IC
