Grove – Ear-clip Heart Rate Sensor 耳夾式 心率感測器 生物識別技術模組

-27%

Grove – Ear-clip Heart Rate Sensor 耳夾式 心率感測器 生物識別技術模組

NT$524 NT$381 未稅

Ear-clip Heart Rate Sensor 耳夾式心率感測器 生物識別技術模組

注意: 本商品為感測器模組板, 非醫療用品, 不可用於正式醫療行為。僅適用於學生/工程師/科學家/研究人員產品開發, 電子實驗使用!

Heart rate ear clip kit contain a ear clip and a receiver module. The heart rate measure kit can be used to monitor heart rate of patient and athlete. The result can be displayed on a screen via the serial port and can be saved for analysis. The entire system has a high sensitivity, low power consumption and is very portable.

尚有庫存

貨號: 101020033(A6-10) 分類: 標籤: ,
  • 商品說明
  • 技術文件
  • 評論 (0)

商品說明

Grove – Ear-clip Heart Rate Sensor 耳夾式心率感測器 生物識別技術模組

注意: 本商品為感測器模組板, 非醫療用品, 不可用於正式醫療行為。僅適用於學生/工程師/科學家/研究人員產品開發, 電子實驗使用!

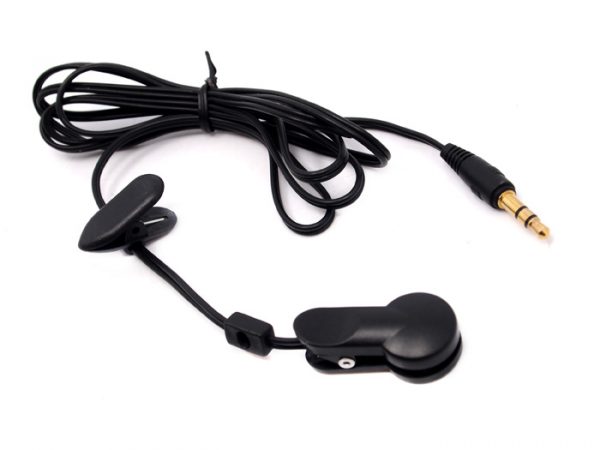

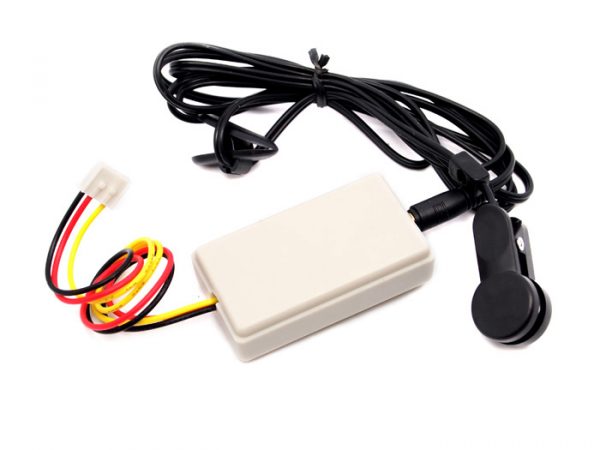

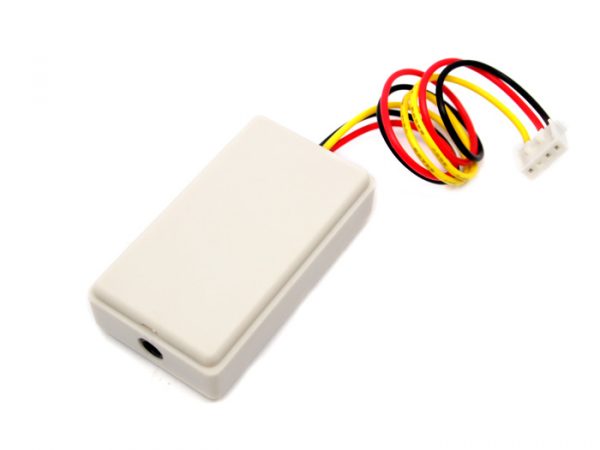

Grove - Ear-clip Heart Rate Sensor 耳夾式心率感測器
Grove – Ear-clip Heart Rate Sensor 耳夾式 心率感測器
Heart rate ear clip kit contain a ear clip and a receiver module. The heart rate measure kit can be used to monitor heart rate of patient and athlete. The result can be displayed on a screen via the serial port and can be saved for analysis. The entire system has a high sensitivity, low power consumption and is very portable.

Introduction

The Heart Rate Ear clip kit contains a ear clip and a receiver module. The heart rate measure kit can be used to monitor heart rate of patient and athlete. The result can be displayed on a screen via the serial port and can be saved for analysis. The entire system is a high sensitivity, low power consumption and portable.

Features

  • Low power consumption
  • Convenient to use
  • High sensitivity
  • Fully RoHS compliant

Specification

Item Min Typical Max Unit
Voltage 3.0 5.0 5.25 V
Work Current 6.5 mA
Length of ear clip wire 120 cm
Measures Range ≥30/min

Application Ideas

  • Heart rate monitor.

Usage

The following sketch demonstrates a simple application of using the Ear-clip Heart Rate Sensor to measure heart rate.

  • Connect this module to the digital port D2 on Grove-Base shield. And connect Grove-LED to Digital port 4.
  • Plug the Base Shield into Arduino/Seeeduino.

Ear Clip Heart Rate.jpg

  • Copy and paste code below to a new Arduino sketch.

  • Upload the code, please click here if you do not know how to upload.
  • Make sure the sensor contacts your ear skin. This is the signal when we are measuring the heart rate:

GROVE heart rate chest belt.BMP

Grove-heart rate serial.jpg
In the left of the figures which is a waveform diagram of the detected heartbeat, A high pulse comes when beating. Note: If the serial monitor return an error message, please change the position of the sensor.
