Arduino Pro Mini 入門套件 – 3.3V / 8MHz SparkFun原廠

-6%

Arduino Pro Mini 入門套件 – 3.3V / 8MHz SparkFun原廠

NT$1,190 NT$1,124 未稅

已售完

貨號: KIT-15257 分類: , , , 標籤:
  • 商品說明
  • 評論 (0)

商品說明

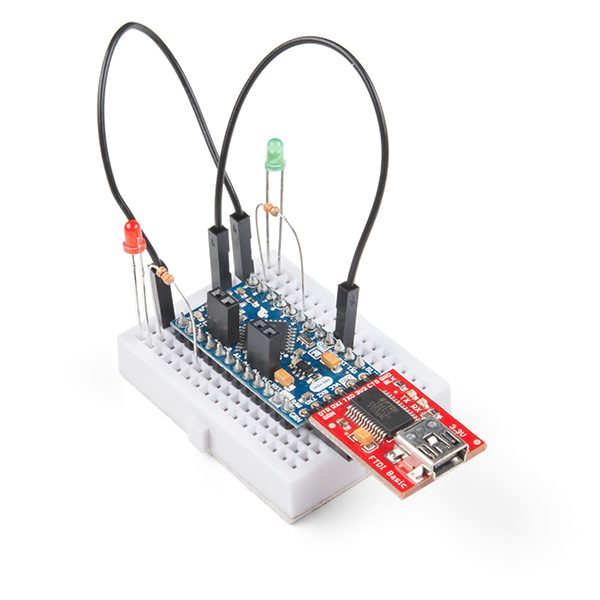

Arduino Pro Mini 入門套件 – 3.3V / 8MHz

Pro Mini是SparkFun最小的設計,Arduino運行在3.3V,帶有8MHz Bootloader。Arduino Pro Mini沒有配備連接器,因此您可以使用任何方向焊接任何連接器或電線。

該套件中的Arduino Pro Mini適用於FTDI Basic Breakout,這就是我們在入門套件中加入一個的原因。板上電壓調節器可接受高達12VDC的電壓。如果您向電路板提供未經調節的電源,請確保連接到“RAW”引腳而不是VCC。該電路板的最新版本還突破了ADC6和ADC7引腳,並為可選的I 2 C電阻增加了佔位面積。

該套件不僅包括Pro Mini和FTDI板,還包括40個公頭,6個直角公頭(非常適合FTDI連接),兩組2針母頭,用於偏移A6 / A7和SDA / SCL引腳,一個小巧的麵包板,跳線,甚至幾個帶電阻的LED,讓你立刻眨眼。我們還為您的FTDI板提供了一根6英寸mini-B USB電纜,這條電纜雖然短但功能強大,但是如果您需要更長的電纜,請檢查您的USB電纜抽屜或下面的連接配件。



特徵

Pro Mini

  • ATmega328以8MHz運行,帶有外部諧振器(0.5%容差)
  • 0.8mm薄PCB
  • USB連接板外
  • 支持自動重置
  • 3.3V穩壓器
  • 最大150mA輸出
  • 過流保護
  • 重量不到2克!
  • 直流輸入3.3V高達12V
  • 板載電源和狀態LED
  • 模擬引腳:8
  • 數字I / O:14
  • 0.7×1.3英寸(18×33毫米)

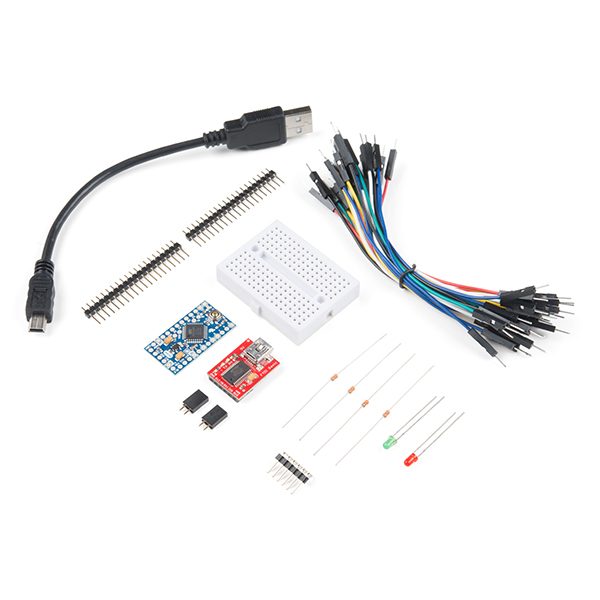

出貨清單

  • Arduino Pro Mini 328 – 3.3V / 8MHz
  • FTDI基本突破 – 3.3V
  • 麵包板 – 迷你模塊(白色)
  • USB Mini-B線 – 6“
  • 打破標題 – 直(40針)
  • 跳線高級4英寸M / M(30包)
  • LED – 基本紅色3毫米
  • LED – 基本綠色3毫米
  • 2x 電阻330歐姆1/6瓦PTH
  • 斷開接頭 – 直角(6針)
  • 2個母頭(2針)



Documents



=========================================================

What’s blue, thin, and comes with everything you need to get started? The Pro Mini 3.3V Starter Kit! The Pro Mini is SparkFun’s minimal design approach to Arduino running at 3.3V with a 8MHz bootloader. The Arduino Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need.

The Arduino Pro Mini in this kit works well with the FTDI Basic Breakout which is why we included one in the starter kit. The voltage regulator on board accepts voltage up to 12VDC. If you’re supplying unregulated power to the board be sure to connect to the “RAW” pin and not VCC. The latest and greatest version of this board also breaks out the ADC6 and ADC7 pins as well as adds footprints for optional I2C resistors.

This kit not only includes the Pro Mini and FTDI board, but 40 male headers, six right angle male headers (great for the FTDI connection), two sets of 2-pin female headers for the offset A6/A7 and SDA/SCL pins, a tiny breadboard, jumper wires, and even a couple of LEDs with resistors to get you blinking right away. We also included a six inch, mini-B USB cable for your FTDI board, this cable is short but mighty and works well with this tiny setup, but if you need a longer one check your USB cable drawer or the hookup accessories below.

Features

Pro Mini

  • ATmega328 running at 8MHz with external resonator (0.5% tolerance)
  • 0.8mm Thin PCB
  • USB connection off board
  • Supports auto-reset
  • 3.3V regulator
  • Max 150mA output
  • Over current protected
  • Weighs less than 2 grams!
  • DC input 3.3V up to 12V
  • On board Power and Status LEDs
  • Analog Pins: 8
  • Digital I/Os: 14
  • 0.7×1.3″ (18x33mm)

Includes

  • Arduino Pro Mini 328 – 3.3V/8MHz
  • FTDI Basic Breakout – 3.3V
  • Breadboard – Mini Modular (White)
  • USB Mini-B Cable – 6″
  • Break Away Headers – Straight (40-pin)
  • Jumper Wires Premium 4″ M/M (30 pack)
  • LED – Basic Red 3mm
  • LED – Basic Green 3mm
  • 2x Resistor 330 Ohm 1/6th Watt PTH
  • Break Away Headers – Right Angle (6-pin)
  • 2x Female Headers (2-pin)

Documents
