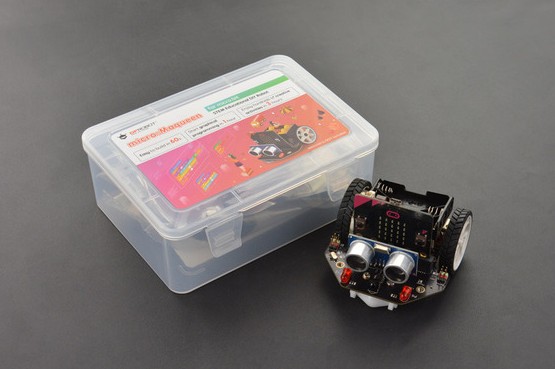

麥昆機器人 Maqueen micro:bit Robot Platform 圖形編程 機器人 DFRobot原廠

-23%

麥昆機器人 Maqueen micro:bit Robot Platform 圖形編程 機器人 DFRobot原廠

NT$1,095 NT$848 未稅

迷你教育機器人 – Maqueen為STEM教育設計的迷你機器人,在一分鐘內開始,無需複雜的安裝 ,減少裝配,更有趣。
只需幾步即可設置Maqueen。

已售完

  • 商品說明
  • 評論 (0)

商品說明

麥昆機器人 Maqueen micro:bit Robot Platform 圖形編程 機器人 DFRobot原廠

適合初學者的最佳DIY機器人套件

我叫Maqueen (本套件組不包含BBC主板跟電池)

大家好,我叫麥昆,是一款面向創客教育的圖形化編程機器人,繼承了 Micro:Bit 可玩性高和上手簡單的特點。迷你的車身,有趣的功能,和即插即用的免接線方式能夠讓小孩在寓教於樂中快速學習圖形化編程,培養小孩對科學的興趣以及邏輯思維能力。

麥昆現在可以訪問Mind + Programming平台。Mind +是來自DFRobot的基於Scratch3.0的圖形編程平台,支持python,Arduino和其他編程平台。目前,Mind +已應用於各種傳感器,模塊和相關教育產品。

建議年齡:8 +



麥昆具有哪些功能和特點?

  • 支持makecode,支持Scratch及python
  • 體積迷你,移動靈活
  • 全金屬微型減速電機,質量優良,驅動力強
  • 巡線、氛圍燈、LED車燈、超聲波接口、蜂鳴器、I2C接口、金手指接口、機械擴展螺孔等等……功能齊全,擴展性強
  • 獨家定制的賽鋼材料支撐輪,靈活可靠,越障能力強
  • 安裝簡單,輕鬆上手



規格參數

  • 供電電壓:3.5V~5V DC(3節7號乾電池或3.7V鋰電池)
  • 紅外巡線傳感器(高低電平)×2
  • 嗡鳴器×1
  • 紅外接收(NEC編碼)×1
  • LED車燈(高低電平控制)×2
  • RGB氛圍燈(全彩1600萬色)×4
  • SR04、SR04P超聲波接口(5V))×1
  • IIC接口(3.3V)×1
  • N20金屬減速電機×2
  • 電機減速比:1:150
  • 電機最大轉速:133轉/分
  • 電機驅動方式:PWM電機驅動
  • 支架及保護蓋擴展M3螺絲孔×6
  • 編程方式:makecode圖形化編程、Mind+圖形化編程(基於Scratch3.0)
  • 產品尺寸:寬81mm×長85mm×高44mm(不含micro:bit主板高度)
  • 產品重量:75.55g(不含電池,不含micro:bit主板及周邊配件)

功能圖解


產品安裝

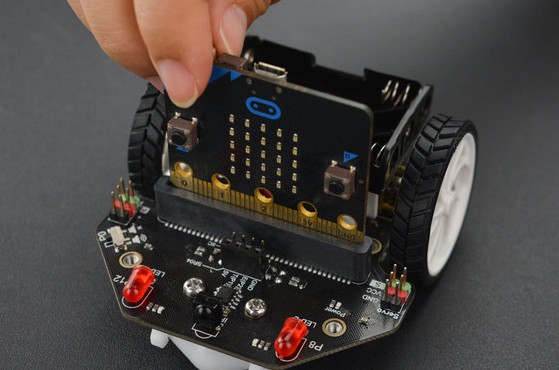

安裝車輪和電池



出貨清單

  • 車體(出廠已安裝好電機和支撐輪)×1
  • 輪子×2
  • 3節7號電池盒×1
  • 雙面膠×1



Documents





=========================================================

Maqueen micro:bit Robot Platform

I am Maqueen

Hello, my name is Maqueen, is a graphical programming robot for STEM education, which inherits playability and simple operation of micro:bit. The Mini-body, interesting features and plug-and-play allow children to quickly learn graphic programming in entertaining, nurturing children’s interest in science and logical thinking.

Suggest Age: 8 +

Maqueen is accessible to Mind+ Programming platform now. Mind+ is a Scratch3.0-based graphical programming platform from DFRobot, supporting python, Arduino and other programming platforms. At present, Mind+ has been applied to all kinds of sensors, modules and related educational products.

FEATURES

  • Support for Makecode, will support Scratch and python later.
  • Small size, flexible movement.
  • All-metal miniature gear motor, good quality, strong driving force.
  • Line patrol, ambient light, LED lights, ultrasonic interface, buzzer, I2C interface, mechanical expansion screw hole, etc. … full-featured, highly expandable.
  • Exclusive customized POM bearing wheel, flexible and reliable, strong obstacle crossing ability.
  • Easy to install, easy to use.

SPECIFICATION

  • Supply voltage: 3.5V~5V DC (3 sections of 7th dry battery or 3.7V lithium battery)
  • Infrared line sensor (high and low level) × 2
  • Buzzer ×1
  • Infrared reception (NEC coding) × 1
  • LED lights (high and low level control) × 2
  • RGB atmosphere light (full color 16 million colors) × 4
  • SR04, SR04P ultrasonic interface (5V)) × 1
  • IIC interface (3.3V) × 1
  • N20 metal geared motor × 2
  • Motor reduction ratio: 1:150
  • Maximum motor speed: 133 rpm
  • Motor drive mode: PWM motor drive
  • Bracket and protective cover extension M3 screw hole × 6
  • Programming method: makecode graphical programming, Mind+ graphical programming (based on Scratch3.0)
  • Product size: width 81mm × length 85mm × height 44mm (excluding micro:bit motherboard height)
  • Product weight: 75.55g (excluding battery, excluding micro:bit motherboard and peripheral accessories)

Installation

 Maqueen micro:bit Robot Platform 麥昆機器人

SHIPPING LIST

  • Body (factory motor and support wheel installed) ×1
  • Wheel × 2
  • 3 section 7 battery box × 1
  • Double-sided tape ×1
